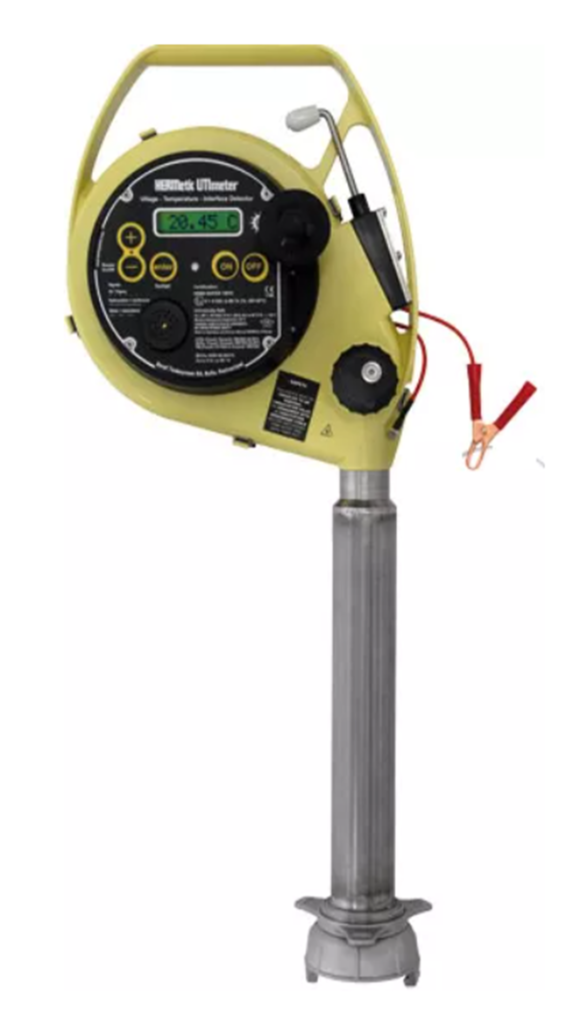

HERMetic UTImeter Gtex 2000

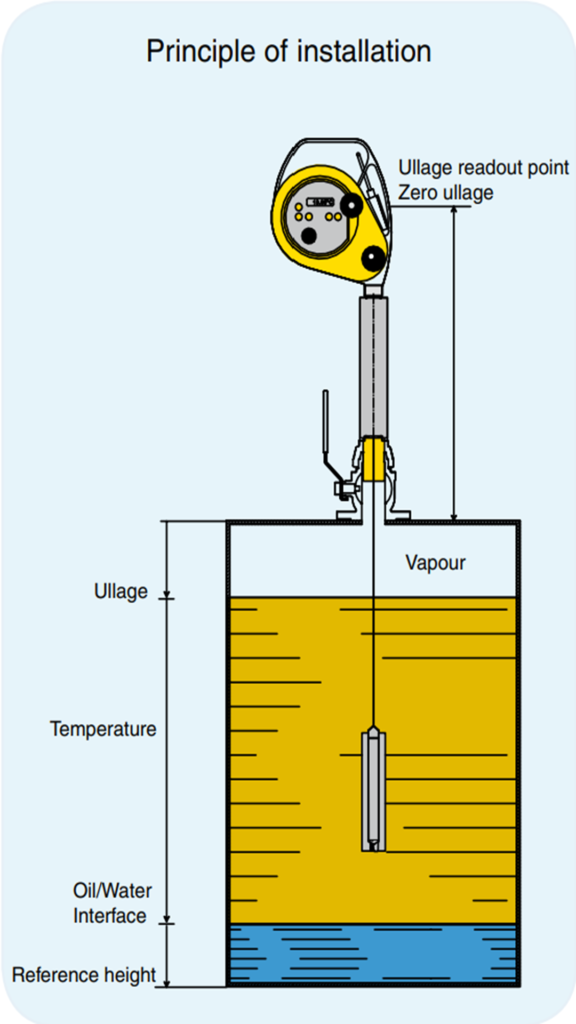

The Honeywell HERMetic UTImeter Gtex 2000 is a high-precision portable gas-tight liquid level gauge designed for safe and accurate closed tank gauging operations in petroleum terminals, refineries, chemical storage facilities, marine terminals, and offshore applications. The system is engineered for custody transfer, inventory control, ullage measurement, temperature verification, free water detection, and reference height measurement while minimizing hazardous vapor release during tank gauging.
Designed to operate with a compatible HERMetic vapor control valve, the UTImeter Gtex 2000 provides a secure and efficient solution for measuring petroleum and chemical products without opening the tank atmosphere. Its rugged construction, advanced ULTRA sensing probe, electronic measurement technology, and hazardous-area approvals make it suitable for demanding marine and industrial environments.

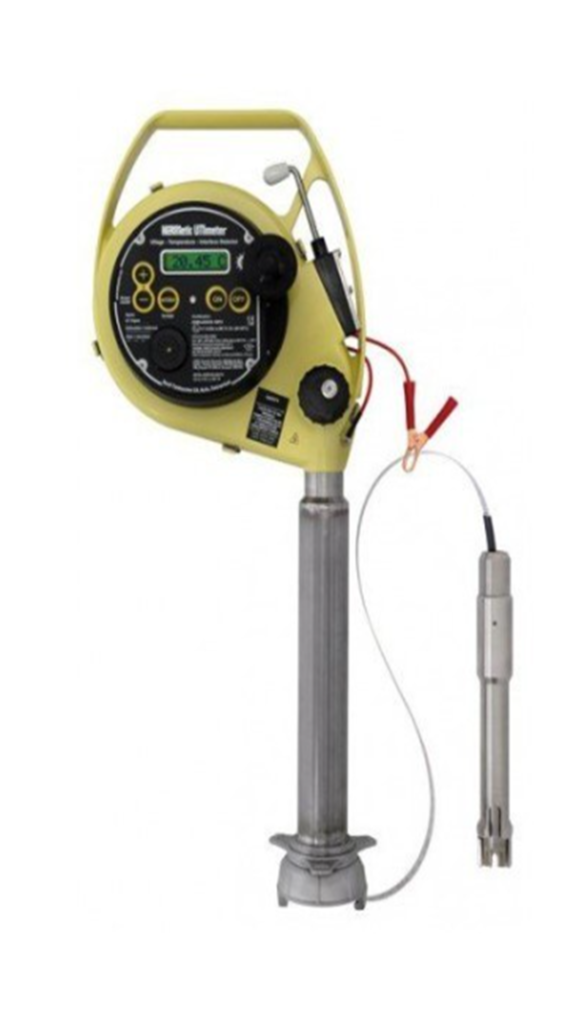

ULTRA Sensing Probe
The HERMetic UTImeter Gtex 2000 ULTRA sensing probe integrates multiple sensing technologies into a compact measurement assembly.
The sensing system incorporates:
Ultrasonic liquid level sensor
RTD temperature sensor
Conductivity electrode
Stainless steel tube construction
PEEK sensor head
The combination of these sensors allows the instrument to perform accurate liquid-level, temperature, and interface measurements in demanding tank-gauging applications.
HERMetic UTImeter Gtex 2000 Technical Specifications
| Parameter | Specification |
|---|---|
| Ullage / Interface Accuracy | ±2 mm |
| Tape Accuracy | ±1.5 mm per 30 m |
| Measurement Resolution | 1 mm / 1⁄16 inch |
| Temperature Resolution | 0.01°C or 0.1°C |
| Temperature Accuracy | ±0.1°C (0 to 70°C) |
| Temperature Accuracy | ±0.2°F (32 to 158°F) |
| Sensor Temperature Range | -40°C to 90°C |
| Ambient Temperature Range | -20°C to 50°C |
| Display | 8-character backlit LCD |
| Indication | Selectable audible and visible indication |
| Power Supply | Approved 9V batteries |
| Maximum Tank Overpressure | 0.3 bar / 4.4 psi |
Key Benefits
Safe gas-tight closed tank gauging without opening the tank atmosphere
Helps protect operators by minimizing exposure to hazardous vapors during measurement.Accurate measurement of ullage, temperature, and oil-water interface
Provides reliable multi-parameter readings for precise tank assessment.Supports custody transfer and inventory control operations
Helps maintain accurate financial, cargo, and stock records during product transfer.Helps reduce hazardous vapor emissions during gauging
Supports environmental protection and workplace safety objectives.High measurement repeatability and precision
Delivers consistent results across repeated gauging operations.Suitable for petroleum, chemical, and other liquid storage tanks
Provides flexible use across multiple industrial and marine applications.Portable design for flexible field operation
Allows convenient transport and use across different tank locations.Rugged construction for marine and industrial environments
Designed to withstand demanding offshore, terminal, and refinery conditions.Multiple measurements can be performed during a single gauging operation
Improves efficiency by combining several readings in one process.Suitable for hazardous-area applications
Supports safe operation in explosive or high-risk environments when properly certified and installed.Improves operational efficiency during cargo inspection and tank measurement
Helps reduce downtime and streamline inspection workflows.Technical support from Swift Marine Tech Services Pte. Ltd.
Provides access to product guidance, service coordination, and application assistance.
Key Features
Gas-tight portable tank gauging system
Enables closed-loop measurement without releasing tank vapors.Advanced ULTRA sensing probe
Provides high-sensitivity liquid detection for accurate measurement.Ultrasonic liquid level measurement
Uses sound waves to determine precise liquid levels.Integrated RTD temperature sensor
Provides accurate temperature readings directly within the tank.Conductivity-based oil-water interface detection
Identifies separation between oil and water layers.Electronic ullage and interface measurement
Digitally calculates ullage and interface levels for improved accuracy.Temperature measurement and compensation
Adjusts readings based on temperature variations for greater precision.Tape cleaning device
Removes residue from the tape to help maintain measurement accuracy.Window wiper
Keeps the display window clear in harsh working conditions.Tape protection system
Protects the measuring tape from mechanical damage and wear.Easy battery replacement
Allows quick battery changes to minimize downtime.Interchangeable adaptors
Supports different tank valve configurations for installation flexibility.Heavy-duty sensing probe
Designed for durability in demanding industrial environments.Corrosion-resistant tape connector
Helps prevent degradation caused by chemical exposure.FFKM gasket
Provides high chemical resistance and long sealing life.
International Standards & Approvals
The Honeywell HERMetic UTImeter Gtex 2000 is designed for applications requiring compliance with recognized marine, petroleum, measurement, and hazardous-area requirements.
IMO & Marine Standards
- SOLAS 74
MARPOL 73/78
ISO Standards
- ISO 4512
- ISO 3170
- ISO 4268
API MPMS Standards
- API MPMS Chapter 3.1A
- API MPMS Chapter 7
- API MPMS Chapter 8.1
- API MPMS Chapter 17.11
Hazardous Area Approvals
Depending on equipment configuration and certification, approvals include:
- ATEX
- IECEx
- Factory Mutual
- NEPSI
- GOST
- USCG approval
Applications of HERMetic UTImeter Gtex 2000
The portable tank gauging system is suitable for a wide range of marine, petroleum, and industrial applications, including:
- Marine cargo tank gauging
- Petroleum storage tank measurement
- Chemical storage tank measurement
- Custody transfer operations
- Tank inventory control
- Free water detection
- Oil-water interface measurement
- Refinery tank gauging
- Petroleum terminal operations
- Offshore tank measurement
- Hazardous-area liquid measurement
- Cargo inspection and verification
